Digital circuit designing and simulation

Digital circuit designing and simulation

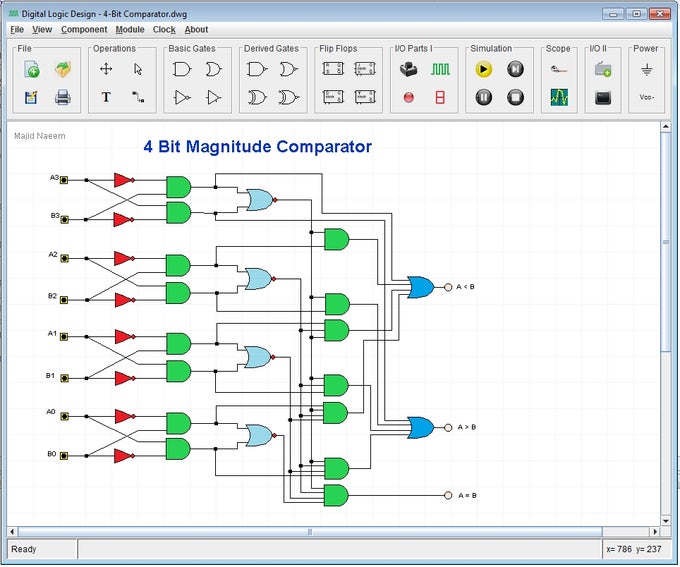

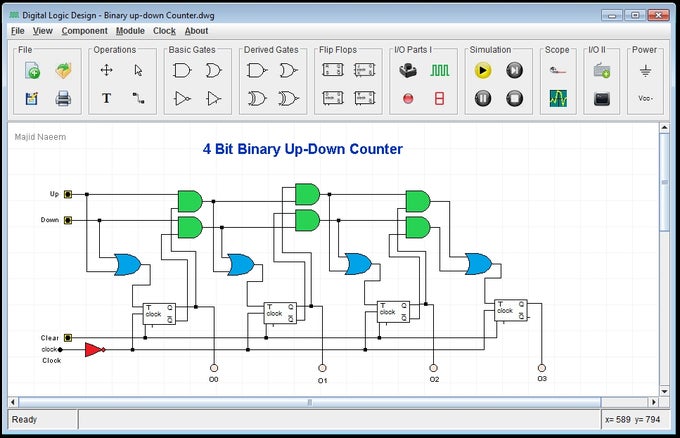

Digital Logic Design is a Software tool for designing and simulating digital circuits. It provides digital parts ranging from simple gates to Arithmetic Logic Unit. In this software, circuit can easily be converted into a reusable Module. A Module may be used to built more complex circuits like CPU. The circuit working can be analyzed by using output parts like LEDs, Seven Segment Display etc.

This Software may be used by professionals, hobbyists and students alike. The teachers can incorporate this software for teaching various courses like Digital Logic and Computer Design, Computer Architecture, Computer Organization and Embedded Systems.

In this software, a circuit may be designed using graphical components or may be entered as Sum-o

Digital Oscilloscope

Adding and Removing Control pins

Built in standard combinational and sequential components.

A circuit not only designed by using graphics symbols but also providing Boolean functions as Sum-of-Product form. A Circuit can easily be converted into reusable Module. A component can be customized and various control pins can be added and removed in a component by the user. Very easy to use just like Paint program point-and-click.
